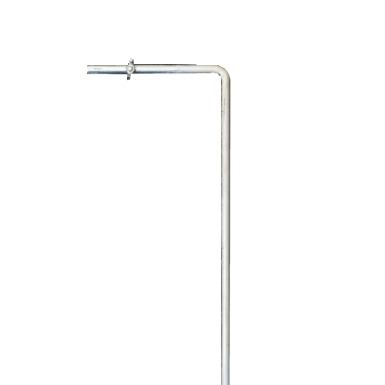

Hotline 1m ground stake

Item No. 47ES2

1m ground stake with wing nut and bolt connection. 9mm diameter.

  • Total length: 100cm
  • With wing nut and bolt connection
  • 9mm diameter
All product details

1m ground stake with wing nut and bolt connection. 9mm diameter.

Advice: Earthing a fence system is perhaps the most overlooked aspect of building an electric fence system. The fence line is only one half of the circuit - the ground is the other. The two together form an open circuit, which is completed when the animal touches both. The fence line operates efficiently as the electricity is carried through highly conductive filaments but on return the pulse is carried through the ground itself. The ground is a variable medium which is affected by weather conditions, geology and the extent of the earth system installed. In dry conditions the ground conducts poorly so it is always recommended to install the ground stake(s) in damp soil. We recommend a minimum of one 1 metre ground stake for any fence applications at least 1m in depth as the top soil is the most susceptible to change. A fence can only be improved by adding multiple stakes linked with wire driven as deep into the earth as possible. Multiple stakes should be placed 2m apart.

  • Total length: 100cm
  • With wing nut and bolt connection
  • 9mm diameter
  • Suitable for use with all Hotline energisers
  • Made of robust galvanised steel

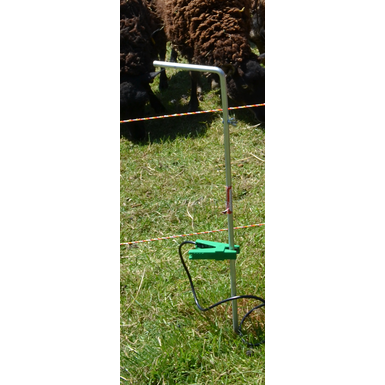

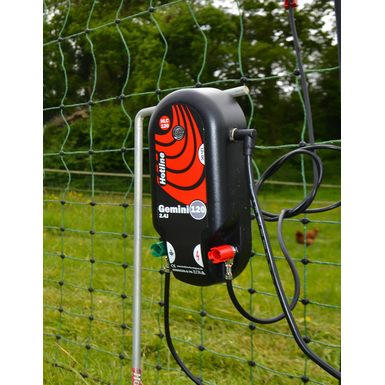

  • Doubles as a stand for Shrike energiser

Customer service

Customer service plays a major role at Hotline. If you have any questions about or products, our customer service department are at your disposal.

Tel: +44 (0)1626 331188

Mail: office@hotline-fencing.co.uk

Specifications
Brand
Hotline
Material
Steel
Technical specification
Total length
100 cm
Diameter
9 mm
Dimensions
Weight
580 g
Content
Content (Pieces)
1
  • Long fence systems may require the installation of a ground return wire along the length of the fence. This provides an efficient medium for the pulse to return to the energiser. Ground stakes are installed periodically along the length of the return wire minimising the amount of actual ground pulse needs to travel.
